How Does Shot Peening Work? A Comprehensive Guide for Engineers and Manufacturers
How Does Shot Peening Work
Shot peening is one of the most effective methods used to enhance the mechanical properties and longevity of metal parts. From aerospace to automotive industries, this cold working process plays a pivotal role in reducing fatigue failures, increasing resistance to stress corrosion, and improving overall component durability.
In this guide, we’ll explore the fundamentals of shot peening, how it works, its benefits, processes involved, applications across industries, and answer the most frequently asked questions.
What is Shot Peening?
Shot peening is a mechanical surface treatment process where a stream of small spherical media—called "shots"—is blasted at the surface of a component. This high-velocity bombardment causes plastic deformation of the surface layer, inducing beneficial compressive residual stresses that help increase the part's strength and resistance to cracking or fatigue.
How Does Shot Peening Work?

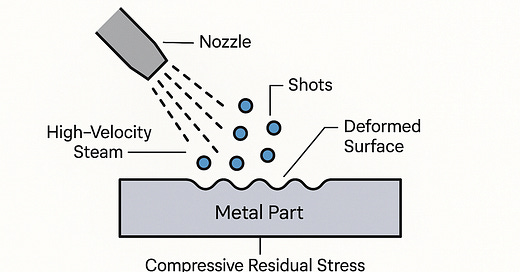

Shot peening works by striking the surface of a metal part with round media (often made of steel, glass, or ceramic) at controlled speed and intensity. Each shot acts like a tiny ball-peen hammer, deforming the surface plastically and creating overlapping dimples.
The Science Behind It
When the shot impacts the surface:
It plastically deforms the material.
The impact compresses the surface layers.
Compressive residual stresses are formed beneath the surface.
These compressive stresses oppose the tensile stresses that can cause fatigue cracks and corrosion, significantly extending the component's life.
Key Components of Shot Peening Process
Media (Shots)
The choice of media plays a critical role in the outcome of shot peening. Common types include:
Cast Steel Shots – Durable and widely used.
Glass Beads – Ideal for delicate or cosmetic applications.
Ceramic Beads – For high-performance components with extreme fatigue requirements.
Shot Peening Equipment
Air Blast Systems: Use compressed air to propel media.
Centrifugal Wheel Systems: Use mechanical wheels to throw media at high velocity.
Robotic or CNC-Controlled Systems: Ensure precise and repeatable peening for complex parts.
Process Control Parameters
Intensity: Measured in Almen strips (a standard test piece).
Coverage: Percentage of surface impacted.
Media Size & Hardness: Must be compatible with the component's material.
Velocity & Angle: Influence the depth and quality of the stress profile.
Benefits of Shot Peening
Shot peening offers a range of mechanical and metallurgical advantages:
1. Increased Fatigue Life
By creating compressive stresses, shot peening significantly reduces the chances of fatigue cracks, particularly at stress concentrators like fillets or welds.
2. Improved Resistance to Stress Corrosion Cracking
Components in harsh environments benefit from the stress barrier created by shot peening.
3. Surface Strengthening
It toughens up soft materials or thin parts without altering their dimensional tolerances significantly.
4. Enhanced Wear Resistance
The cold work hardens the surface, making it more wear-resistant.
Improved Component Reliability
Vital in industries like aerospace, automotive, nuclear, and defense.
Common Applications of Shot Peening
Aerospace Industry
Turbine blades
Landing gear
Wing components
Automotive Industry
Gear shafts
Valve springs
Transmission components
Manufacturing & Tooling
Dies and molds
Cutting tools
Oil & Gas
Drill pipes
Casings
Downhole tools
Types of Shot Peening
1. Conventional Shot Peening
Most commonly used form, involves standard metallic or ceramic media shot at the surface.
2. Laser Peening
Uses high-energy laser pulses to produce even deeper compressive stresses. Typically used for critical aerospace or nuclear components.
3. Ultrasonic Peening
Uses ultrasonic vibrations to strike the surface, suitable for welded joints and fatigue-critical areas.
4. Flapper Peening
A handheld tool with rotating flaps embedded with shot material. Used for localized peening or repair jobs.
Shot Peening vs Sandblasting: What’s the Difference?
While both use high-velocity media to impact a surface, their purposes differ:
CriteriaShot PeeningSandblastingPurposeInduce compressive stressClean or roughen surfacesResultStrengthens and hardens surfacePrepares surface for painting/coatingMediaSpherical (round) shotsAngular abrasive materialsSurface ChangeWork-hardening, stress-inductionMaterial removal, roughening
Quality Control in Shot Peening
Almen Strips
Flat strips that measure the arc height induced by shot peening. A critical standard for verifying intensity.
Coverage Inspection
Usually visually inspected or measured with replica tape or imaging systems. 100% coverage is standard in critical parts.
Media Quality Checks
Ensures shot shape, size, and hardness remain consistent to avoid inconsistent peening or surface damage.
Limitations of Shot Peening
While shot peening is highly beneficial, it's not always suitable for:
Ultra-thin materials that may deform.
Intricate geometries without robotic control.
Materials sensitive to work-hardening or surface contamination.
Advancements and Trends in Shot Peening
Smart Peening Systems
Integrating AI and sensors for real-time process monitoring and automation.
Additive Manufacturing Integration
Shot peening is being adapted to post-process 3D printed metal parts, relieving residual stresses from printing.
Eco-Friendly Media
New developments in biodegradable or recyclable peening media for sustainability.
FAQs About Shot Peening
Q1: What is the primary purpose of shot peening?
To induce compressive residual stress that enhances fatigue life and resistance to cracking in metal parts.
Q2: How is intensity measured in shot peening?
Using Almen strips which bend under impact, measuring arc height to quantify intensity.
Q3: Can shot peening be applied to non-metallic surfaces?
Rarely. Shot peening is primarily used for metallic surfaces. Non-metallics may be too brittle or deform too easily.
Q4: Is shot peening the same as surface hardening?
While it contributes to surface hardening, shot peening is a mechanical process, not thermal or chemical like carburizing or nitriding.
Q5: Can I use shot peening at home or in a small workshop?
Yes, with flapper peening tools or smaller air-blast units, though safety and precision are key.
Q6: How often should parts be re-peened?
It depends on the part's application. Critical parts might need re-peening after a defined number of service cycles, while others may never require it again.
Q7: Is it possible to over-peen a surface?
Yes. Excessive peening can cause surface damage, distortion, or even tensile stress reversal. Hence, process control is critical.
Conclusion: Why Shot Peening Is Essential in Modern Manufacturing
Shot peening is more than just a surface treatment—it’s a life-extending process that has become integral in high-performance, safety-critical applications. By mastering the science and control of shot peening, industries can ensure components perform longer, fail less, and withstand even the harshest operating environments.
As trends push toward automation, AI-integrated peening systems, and sustainable media, shot peening continues to evolve and adapt to the modern age of smart manufacturing.
